SMEMA PCB Vacuum Loader 530*460mm Max PCB For SMT Production Line

PCB Vacuum Loader for SMT Production Line - 50*50-530*460mm PCB Loader | INFITEK Board Handling Equipment

INFITEK LV-460W-TN PCB Vacuum Loader is a vacuum-type PCB loading machine whose function is to transfer bare board PCB to the next process. This is the first process on the board handling in the SMT Production Line. The Vacuum Type PCB loader manufactured by INFITEK is durable, of high quality, and designed to provide smooth and safe operation. The INFITEK LV-460W-TN PCB Vacuum Loading Machine is designed for use with PCBs ranging in size from 50*50mm to 530*460mm.

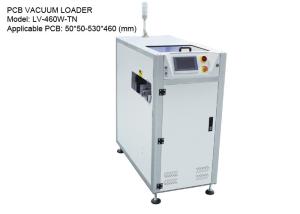

Machine Name: PCB VACUUM LOADER

Model: LV-460W-TN

Applicable PCB Size: 50*50-530*460 (mm)

Machine Dimensions: 800*1270*1300 (mm)

Est. Machine Weight: Approx. 150 kg

Features:

• Convenient operation of touch screen control panel
• The vacuum loader structure is fully enclosed to ensure a safe level of operation
• MCGS Touch Screen and Panasonic PLC Control and OMRON Relay
• Adjust the position of the suction nozzle to ensure the circuit boards are clamped
• Parallel and smooth width adjustment (lead screw)
• Smooth and precise translation (stepper motor)
• Minimize clearance between conveyor
• The machine size can be specified
• SMEMA compatible

Operation Diagram:

SMEMA PCB Vacuum Loader

PCB Vacuum Loader 530*460mm
